Maintenance Free Chemical Earthing

Made with steel core and a copper exterior to provide increased conductivity and corrosion resistance. The electrodes are ANSI/UL 467 approved for length 3 meters, 17 mm diameter with copper coating of 250 microns. Adherence of copper to steel rod is achieved through a pioneered bright acid copper plating process using 14 stations using proper current densities, temperature and brightener additives to achieve copper plating with finer grain structure and a smoother, harder and more uniform surface.

Copper bonded Grounding Rods

Copper bonded rod is most widely used as grounding electrodes. Pragati has in house State of the Art Technology to manufacture the grounding rod with more than 250 micron copper bonding. Grounding rod is approved by UL and tested by other NABL accredited lab.

Features

• Resist corrosion better than Galvanized rods allowing for approximately 30yrs service life in most of the soil
• Minimum tensile strength of 80,000PSI and straightness tolerance 0.01" per linear foot
• Meets the requirement of ANSI/ UL 467, CSA and ANSI / NEMA
• Copper bonded rods are available in various sizes from 1.5 meter to 4 meter and 10mm to 25mm in diameter

LOHM® is an advanced backfill compound, which lowers the contact resistance of the earth electrode to earth by over 60%. It produces low impedance to surges resulting in faster transient dissipation. It is RoHS compliant and has excellent shelf life. It performs in all soil conditions even during dry weather, does not depend on continuous presence of water, requires no maintenance and does not adversely affect soil or ground water. It is available in easily transportable 10/ 25 Kg. bags. Resistivity of chemical is less than 0.1 ohm-m. Earth resistance remains same over wide temperature variation range viz -10 to +60 deg.C

Features of Earth enhancement Chemical "LOHM®"

• RoHS complient
• Absorbs and retains moisture for long time
• Reduce soil resistivity
• Dissipates fault current very fast
• Eliminate need of salt and chemical around electrode
• Maintain integrity of soil and rod contact
• No need of maintenance for longer time
• Earth resistance remains same for longer time even large temperature variation
• Resistivity of chemical is less than 0.1 ohm-m
• IEC 62561-7 complient

Earth electrode and protective conductors are joined by exothermic welding process that employs superheated copper alloy to make permanent & maintenance free joint, avoiding unreliable screwed joints. The welding system is UL 467 approved. Molding kits for all types of Grounding connections are available.

The mobile earthing systems are specially designed to use for short duration. These systems are perfectly suitable for every soil and weather conditions. The electrodes used in mobile earthing system are reusable and are capable of quick current dissipation.

Features

• Specially designed for short duration mobile application
• Reusable; easy installation for any soil conditions
• Ideally suited for System deployed with Cell On Wheel (COW), Mobile Communication Radar units, Mobile hospital units, Mobile ATM's, Mobile Lightning Protection System for Troop Safety
• Mob. electrode capable of substituting multiple traditional electrodes
• Fully welded construction with large surface area for quick current dissipation
• Very high current handling capability
• Assured stable low resistance in all seasons and all soil environments
• Welded terminal plate
• Eco-friendly electrolytic chemical compound
• SS Mesh outside the GI Electrode

Isolation Spark Gap is used to equalize potential between lightning protection Earthing system and functionally separate Earthing systems during rise in ground potential due to lightning strikes.

Features

• Available in 50kA and 100kA Peak Surge Current handling capacity
• Thermal conductive fire proof and water proof resin encapsulation
• Weatherproof enclosure
• Quick response time
• High energy handling capability
• High Thermal Stability

We offer to our clients conductive gel that is known for having very good conductivity and is extensively used in earthing installation at dry/rocky soil. Some of the features of our products include:

• PH compliant with skin.
• Non - irritant, non - greasy and spreads easily & evenly.
• Suitable for dry/rocky soil conditions.

Copper Rod offered feature quality construction finish and can be made available in different industry standards like ASTM, AISI, JIS, GB, EN, BS and others in material grade choices. The choice of diameters thee rods can be provided in can be up to 800mm with length choices of up to 6m or as required by the customers. Some of its features include choice of different surface finishes like polished, bright, brush, sand blast; application suitability in areas like aviation, ships, electronics, mechanical, construction and others.

We deals in Earthing Pit

Features

• Specially Designed for earthing Inspection.
• Durable mild FRP cover and body.
• Square top to aid block pavior cutting.
• Giving a neat edge design.
• Circular clear opening to fit inspection chambers.
• Solid tray base plate.

We are the leading manufacturers & exporters of Copper Coated Strip

Product Details :

Thickness	2 mm,3 mm and 6 mm and more
Usage/Application	Industrial
Size	As per customer requirement
Length	As per customer requirement
Thickness of copper coating	Max. 250 microns
Steel Core	1035 steel cold drawn to ASTM
Brand	Pragati Electrocom

We are the leading manufacturers & exporters of Solid Copper Earth Electrodes

Product Details :

Minimum Order Quantity	50 Piece
Electrode Material	Copper Coating
Electrode Diameter	14 mm to 23 mm.
Brand	LOHM
Color	Copper
Length	1.5/2.0/3.0 meters
Tensile Strength	Min 90000 psi
Nominal Diameter	14/17 mm
Thickness of copper coating	250 microns
Copper Used for Coating	DHP alloy

With rich industrial experience we are involved in offering an extensive range of Earthing Rod.

Product Details :

Material	Steel core and Copper exterior,Copper
Brand	Pragati Electrocom
Length	3 Meters
Copper Coating	250 microns
Length Of Rod	3 Meters
Color	Brown

A well-designed Earthing system is essential for any electrical installation to avoid dangers associated with fault currents. Good Earthing protects both equipment and people against dangerous step & touch voltage. A low resistance Earth Termination System aims.

Product Details :

Material	Bronze
Brand	Pragati Electrocom
Dimension	32 mm to 102 mm
Bolt Dimension	3/4 Inch to 5/8 Inch

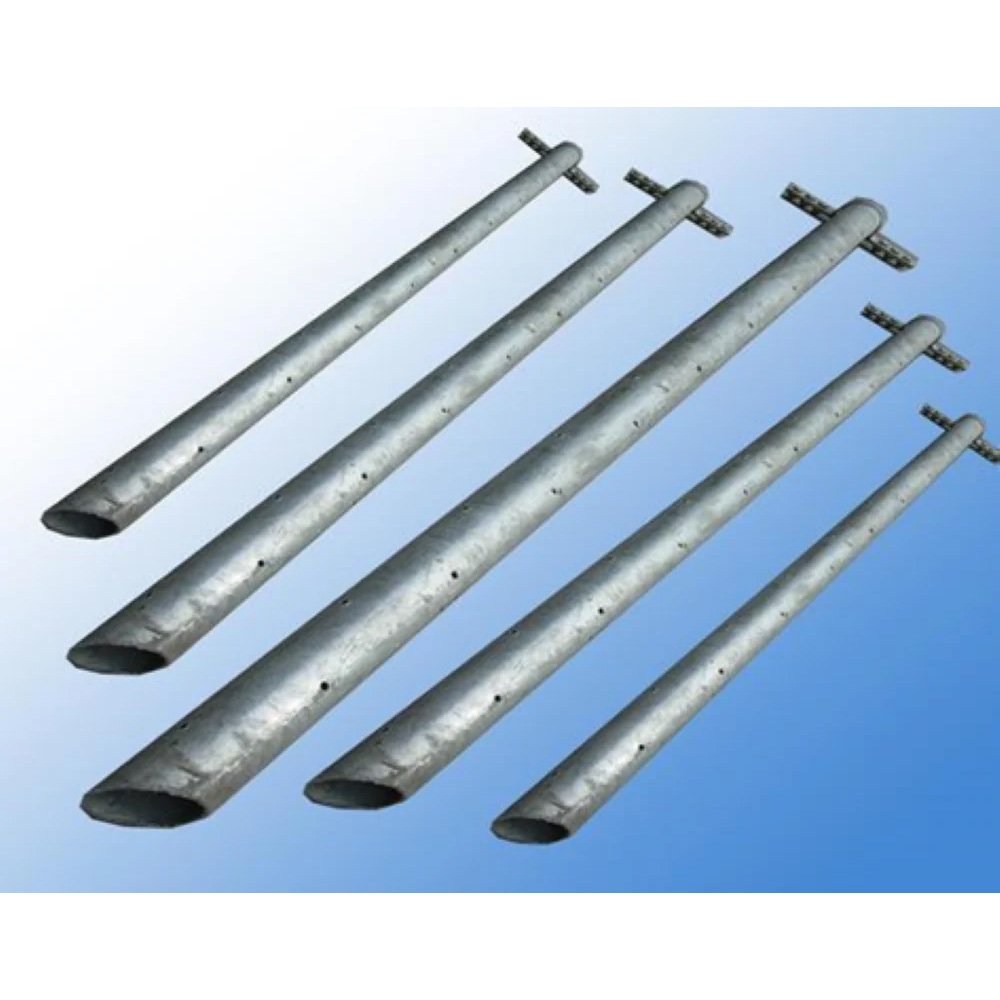

Pipe earthing refers to usage of Pipe as a primary conductor for dissipating fault currents in electrical systems. Usually, GI pipes of Class B category are used along with loads of coal and salt. These days, the strip in pipe or Pipe in Pipe earthing electrodes are also referred to as Pipe earthing

Product Details :

Material	Mild Steel (MS)
Deals	PAN India
Size	As per Requirement
Brand	Pragati Electrocom
Country of Origin	Made in India

A solid metallic plate or a system of closely spaced bare conductors that are connected to and often placed in shallow depths above a ground grid or elsewhere at the earth surface, in order to obtain an extra protective measures minimizing the danger of the exposure to high step or touch voltages in a critical operating area or places that are frequently used by people.

Product Details :

Brand	Pragati Electrocom
Deals	PAN India
Equipment Type	Earth Grid
Finishing	Brass
Country of Origin	Made in India

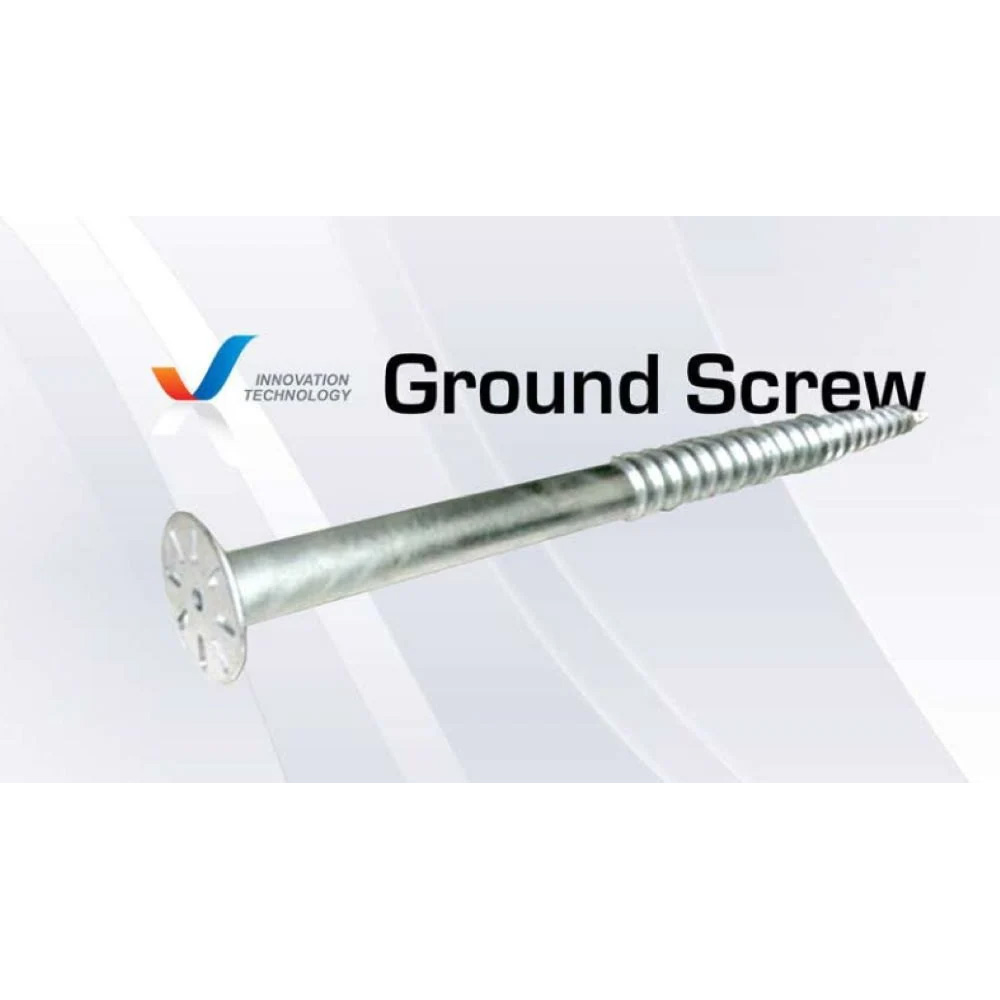

Pragati has developed new concept of "Groud Screw" which is ideal for portable earthing, defence & telecom, solar fileds, solar street lighting, parks & garden etc.It requires no digging, no concreat, and its cost & time effective & environment friendly. It is easy to unistall & re-use.

Product Details :

Material	Mild Steel
Deals	PAN India
Brand	Pragati Electrocom
Color	Silver
Country of Origin	Made in India

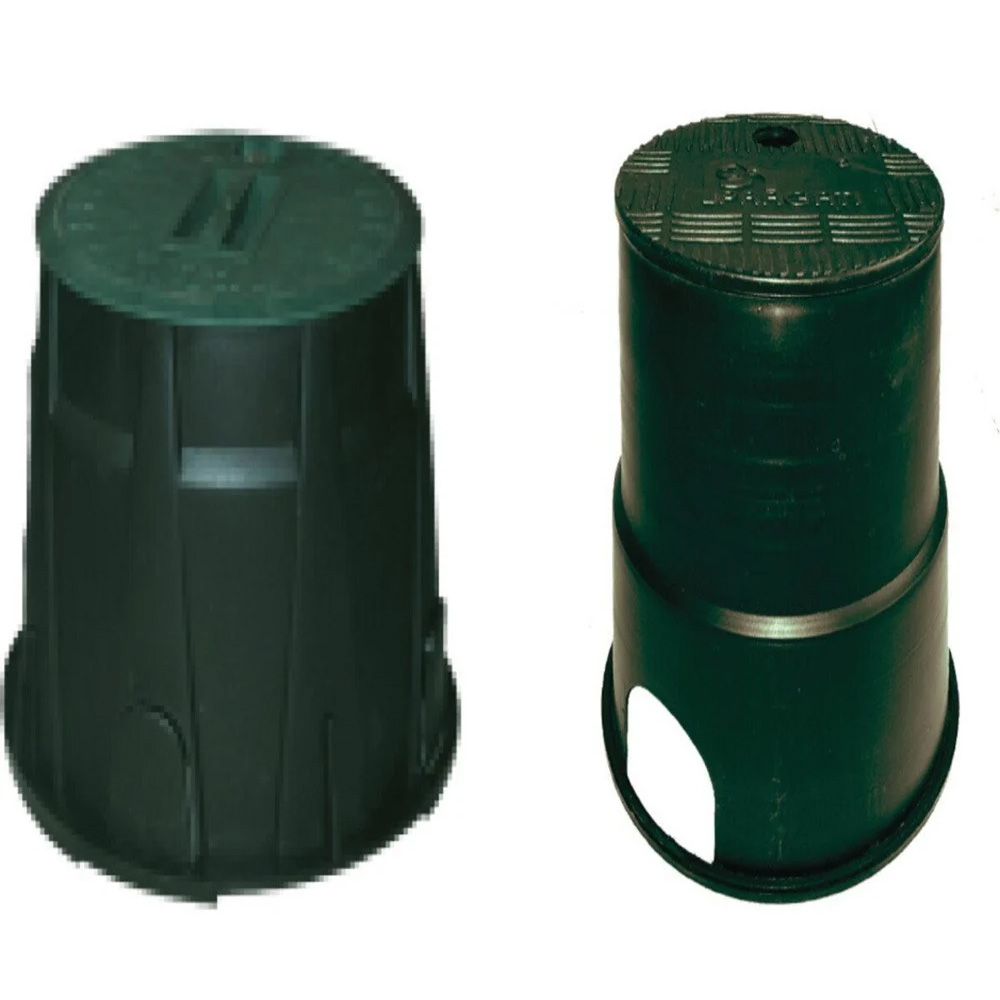

Features

• Offers total protection and inspection point to earthing system.
• Environment friendly, heavy duty, weather proof and chemical resistant material of poly plastic.
• Locking facility provided at the top.
• 4 knock-out openings for the outing/interconnecting of strips to form a GRID.
• High mechanical strength, zero water absorption and resistant to sunlight rays.

Dimensions

• At Top 10 inches(254mm)
• At Bottom 13 inches (330mm)
• Height 10.25 inches (260mm)

Product Details :

Material	PVC
Shape	Round
Brand	Pragati Electrocom
Color	Black
Dimensions	At Top 10 inches(254mm) At Bottom 13 inches (330mm) Height 10.25 inches (260mm)
Country of Origin	Made in India
